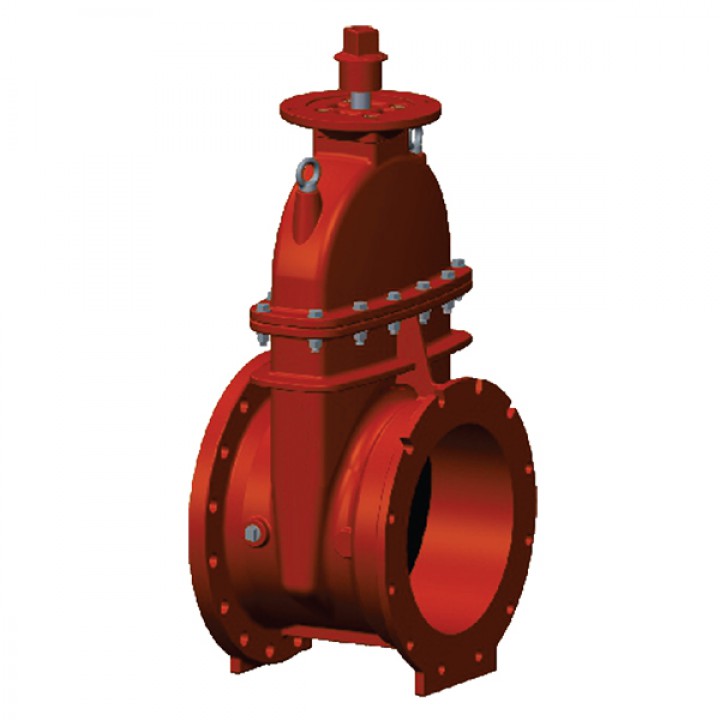

20” & 24” Size, Flanged X Mechanical Joint 200psi – 3188-200-FXMJLF

Complies with AWWA C515 Standard
Non-rising stem
With handwheel or a 2″ operating nut
Triple O-rings stem seal
NPT plug on body
Flanges to ANSI B16.1 Class 125 (Other flange types available upon request)
Mechanical joint ends to ANSI/AWWA C153/A21. 53 Standard
UL Listed
200 PSI
-10ºC to 82ºC Working temperature
Corrosion protection – Fusion bonded epoxy coated interior and exterior to AWWA C550 standard

We are amongst the Bahrain’s biggest supplier and full solution providers of Fire Fighting equipment, fire protection systems, fire alarm, security systems and safety engineering under one roof. Dedicated to the science of firefighting, we established in year 2002 with a vision to be the most recognized Fire Protection Company through quality and development to save lives and properties.
