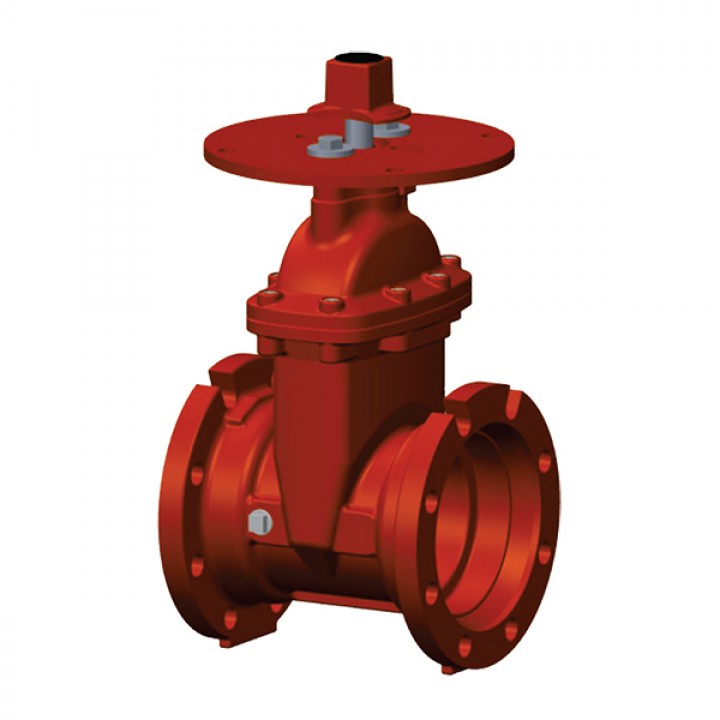

2.5” – 12” Size, Flanged X Mechanical Joint – 3288-XXX-FxMJLF

2.5” – 12” Size, Flanged X Mechanical Joint – 3288-XXX-FxMJLF

• Complies with AWWA C515 Standard
• Non-rising stem
• 4″ to 12″ Size provided with indicator post plate, other sizes – plate provided only when specified at time or order
• Triple O-rings stem seal
• NPT plug on body
• Flanges to ANSI B16.1 Class125
• Mechanical joint ends to ANSI/AWWA C153/A21, 53 Standard
• UL Listed & FM Approved for all sizes except 2.5″ which is only FM approved.
• 300PSI Working pressure ( 200PSI (3288-200-FXMJLF) and 250PSI (3288-250-FXMJLF) available upon request.)
• -10C to 82C Working temperature
• Corrosion protection – Fusion bonded epoxy coated interior and exterior to AWWA C550 standard
