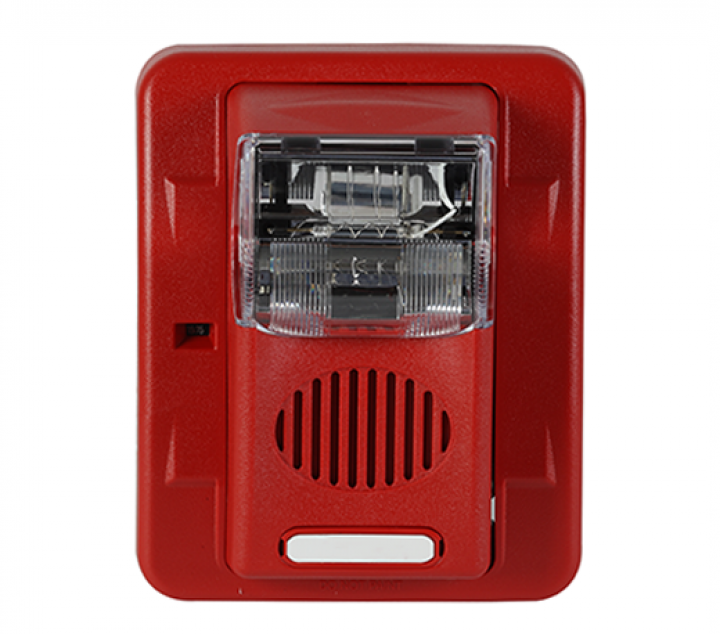

Selectable Candela Evacuation Signals – HEC3-24WR

Selectable Candela Evacuation Signals – HEC3-24WR

• Nominal voltage – 24VDC
• 24VDC units have field selectable candela options of 15, 30, 60, 75, and 110 candela
• Unit Dimensions: 5″ high x 4.5″ wide x 2.5″ deep
• Synchronize strobe and/or horn with Hochiki Series Control Module
• Pre-wire entire system, then install signals
• Lower installation and operating costs
• Input terminals supports 12 to 18 gauge wire
• Switch selection for high or low dBA
• Switch for chime, whoop, mechanical and 2400Hz tone
• Switch for continuous or temporal 3 (not available on whoop tone)
• Surface mount with the HSB (Hochiki surface mount box)
• Silence horn while strobes remain flashing
• Wide voltage range  16-33VDC
• Face-plate available in red
